Product Introduction
ZBW series intelligent non-contact ac stabilizer is self-developed and self-manufactured byour company, which has international advanced level. Basing on the particular order, it adoptsintegration and controls several thyristor voltage zero-crossing on and off to change the size andpolarity of compensating voltage, is the perfect combination of thyristor AC switch technology andtransformer technology, and has the advantages of good stability and efficiency, non-pollution topower network, can work continuously and reliably under all kinds of harsh and complex load, theservice life is very long, can continuous trouble-free operation more than 100,000 hours, realizedthe stabilizer long-term free maintenance.
Technical Specification
| Input Voltage | Regulators scope | Three Phase304V-456V,One Phase176V-264V |
| Frequency | 50HZ/60HZ | |
| Output Voltage | Rated voltage | Phase Voltage 220V,Line Voltage 380V |
| Regulators accuracy | ±（1-5)% option(±2.5%for the conventional） | |
| Response time | ≤10ms | |
| Waveform distortion | Do not produce additional waveform distortion(static) | |
| Efficiency | ≥98% | |
| Three-phase imbalance of | Automaic three-phase voltage balance | |
| Delay output | Again from the first regulator(protective equipment without shocks) | |
| Overvoltage | The output voltage of more than 10%(245V),or cut output to bypass uninterrupted | |
| Undervoltage | The output voltage of less than 10%(195V),or cut output to bypass uninterrupted | |
| Proection | Lack of | Have(automatically cut) |
| Overload | Electronic detection,within three minutes overload cut output | |
| Short circuit | Dual electronic detection and protection circu breakers | |
| Overcurrent | Dual electronic detection and protection circu breakers | |
| Bypass | Manual or automaic bypass uninterrupted | |
| Lighs | Voltage | A、B、C、respectively, with three-phase ABC TRMS figures show |
| Current | A、B、C、respectively, with three-phase ABC TRMS figures show | |
| Working conditions | Regulators stae/bypass state | |
| Abnormal | Over-voltage, under-voltage, overload, fuse fault | |
| Work methods | The two regulators are working methods and bypass | |
| Overload | Five times the rated current 1 seconds | |

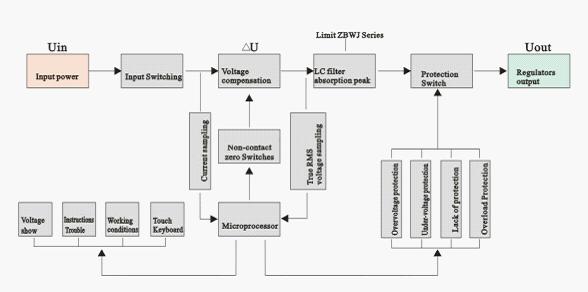

Work Principle
Using microcomputer(MCU+12-bit high-speed AD PLD) intelligent detectection,electronic control module output directive (IGBT or SCR)Fast switching through the same frequency rtansformers, phase-locked, sine wave superposition compensation maintain output voltage stability.Fast response, No Carbon Brush, No contact, no machinery, automaic three-phase voltage balance.
| Fast response | Twelve high-speed AD collection, collecting 64 points a week-wave, digital processing MCU computing, electronic modules rapid compensstion. |
| Multiple adjustment formula can be set | The same tune: When ses with the tune, while AD Acquisition A,B,C the true RMS voltage three-phase conducted average, gives instructions for compensation can effectively improve the imbalance of the three-phase voltage. |
| The tune: When set the tune, each three-phase voltage adjustment to ensure the accuracy of three-phase voltages are within the framework of three-phase voltage imbalance in the power grid, we can balance three-phase voltage, Particularly suitable for single-phase load. | |
| Automatic judgment: microcomputer automatic analysis should be conducted at the same tune or transferred. | |
| Aduanced Measurement Technology | 12AD acquisition, digatl filtering and SCM TRMS calculation. |
| The adduracy control | Large-scale programmable logic device and MCU with the perfect. |
| Human interface | Through touch button operation panel can set various indicators(output voltage regulator accuracy and protection). |
| No output waveform Distortion | Using non-contact switch is switched off,the same frequency,with the wave,phase-locked compensation superposition principle. |
| Harmonic interference resistance | True RMS voltage detection. |
| Wide Load | Resistive, capacitive, inductive load can adapt. |
| Starting ease impact | A first regulator to output. |
| Full protection | When there overvoltage, undervoltang,in one second or in the protection of automatic conversion to bypass uninterrupted work, and the lack of sound, overload, short-circuit protection and faul after the sound and light alarm function. |
| Voltage and current shows | Voltage, current figures show that were true RMS. |
ZBWB series of non-contact AC Voltage Regulator(with transformer)
In order to adapt to different countries voltage standard equipment, special PSA has been developed regulator that integrates, No Carbon Brush, No contact, no machinery, the three-phase
transfer.
Specifications and performance characteristics and ZBW series the same, and its dimensions can be customized according to different capacity.
ZBWJ series of non-contact AC Voltage Regulator(Purification)
The rapid economic development, industrial equipment continues to increase, and made China’s growing shortage of power supply, power grid quality getting worse. There overvoltage, less
voltage, and instantly the sharp pulse, and instantly fell, equipment inter-EMI electromagnetic interference, and other conductive anomalies. Ordinary regulator power supply can no longer meet
the requirements of special series has been developed ZBWJ exchange purification regulator power supply.
ZBW shape and size of the same series, the series in ZBW increase on the basis of the following functions(including all indicators ZBW Series):
●Surge protection: 40KA high current peak of several attacks since 8-20 us resume(mine)
●peak inhibition: Admission of 4000V, 8-20us pulse, the output is less than 40V
●filter performance: 15KHZ-20MHZ, different mode 70-100dB, 100dB common mode of high-frequency has a good effect
●purification strong function: the load on power grids can filter out interference, but also filter out the interference load on the power grid
ZBWT series of non-contact AC Voltage Regulator(Non-zero line)
In some special occasions, special equipment, power Grid transformer in PSA , the second triangle side by that the output of zero line(neutral line).In response to this situation grid has
been developed ZBWT special series of non-contact, no exchange regulator. Input voltage three-phase three-for the 220V, 200V, 208V, and so on, other technical indicators and ZBW series the same
Scope of Application
Various CNC machining centers, medical equipment, printing machinery and equipment, environmental testing equipment, electronic testing equipment, communications equipment, particularly applicable to large fluctuations of the power grid, is tantaneous voltage power supply mutations and adverse environment. Networ equipment voltage and the voltage of different places.
Various standard voltage in NC machining, medical equipment, printing machinery and equipment, environmental testing equipment, electronic testing equipment, communications equipment.
Model specification
| Model | Rated Capacity （KVA） | Input voltage range （V） | Output voltage （V） | Rated current （A） | Cabinet Outer Size W*D*H（mm） | Weight （kg） |
| ZBW-S10 | 10 | Three phase 304V-456V | Three Phase 380V±7% Can be setup | 15 | 360×610×160 | 140 |
| ZBW-S20 | 20 | 30 | 360×610×160 | 160 | ||
| ZBW-S30 | 30 | 46 | 360×610×160 | 180 | ||
| ZBW-S50 | 50 | 76 | 400×660×880 | 195 | ||
| ZBW-S80 | 80 | 121 | 660×660×1500 | 316 | ||
| ZBW-S100 | 100 | 152 | 660×660×1500 | 330 | ||
| ZBW-S120 | 120 | 182 | 660×660×1500 | 380 | ||
| ZBW-S150 | 150 | 228 | 700×700×1600 | 450 | ||
| ZBW-S180 | 180 | 273 | 700×700×1600 | 500 | ||
| ZBW-S225 | 225 | 342 | 900×800×1900 | 530 | ||
| ZBW-S250 | 250 | 380 | 1100×800×2100 | 580 | ||
| ZBW-S320 | 320 | 486 | 1100×800×2100 | 630 | ||
| ZBW-S400 | 400 | 608 | 1100×1000×2200 | 750 | ||
| ZBW-S500 | 200 | 760 | 1200×1000×2200/2 | 870 | ||
| ZBW-S600 | 600 | 912 | 1200×1000×2200/2 | 980 | ||
| ZBW-S800 | 800 | 1215 | 1400×1000×2200/3 | 1100 | ||
| ZBW-S1000 | 1000 | 1512 | 1400×1000×2200/3 | 1300 | ||
| ZBW-S1200 | 1200 | 1823 | 1400×1000×2200×/3 | 1450 | ||
| ZBW-D3 | 3 | One phase 176V-264V | One phase 220V±7% Can be setup | 13.6 | 250×500×500 | 20 |
| ZBW-D5 | 5 | 22.7 | 250×500×500 | 28 | ||
| ZBW-D10 | 10 | 45.4 | 350×600×600 | 50 | ||
| ZBW-D20 | 20 | 91 | 350×600×600 | 80 | ||
| ZBW-D30 | 30 | 136 | 660×600×1400 | 100 | ||
| ZBW-D50 | 50 | 227 | 660×660×1400 | 140 |
ZBW series of electronic and mechanical SBW series differs from the exch ange regulator comparison
| Specifications | SBW series of high-power automatic compensation | ZBW series microcomputer compensation of non-contact |
| Prineiple | Carbon Brush-rely on the surge in themobile transformer change compensation voltag transformer secondary winding maintain out-put voltage stability. There Carbon Brush, contacts, mechanical transmission. | By microprocessors and large-scale logiccircuits (PLD)ex-change control in the AC voltage is switched off 0.1 of a combination of transforme swiching compensation mainain output voltage stability. No Carbon Brush, No contact, no machinery, the three-phase transfer. |
| Response time | Slower(about 200 ms) | Express（＜10ms） |
| Voltage adjustment rate | Slow(20V/S,V per second adjustment20V ) | Express（20%jump voltage, voltage stability to the center）of time＜10ms) |
| Three-phase imbalance of | EC does not have three-phase voltage-automatic balance function | Automatic three-phase voltage balance, the three-phase transfer |
| Starting ease impact | Non-conventional products | A functional again from the first regulator |
| Automatically boot | Non-conventional products | No, one bailiffs have Shou function automatically boot |
| Anti-harmonic function | There is no such function | Voltage, current acquisition have anti-harmonic function, load equipment in the powei grid or serious harmonic interference, the output voltage can still, maitain stability, current measurement can still maintain accurate |
| Fault Protection | Cut Output | Protection time soon, cutting output or uninterrupted automatically converted to bypass work |
| Bypass function | The manual bypass | There are (and can automatically bypass uninterruped) |
| Periodic maintenance | Regular maintenance | Maintenance-free |
| Parameters | Pointer | Various parameers TRMS figures show |
| Parameter settings | Simulation potentiometer adjustments,or may not ses | Digital touch key settings(convenient,humane) |
